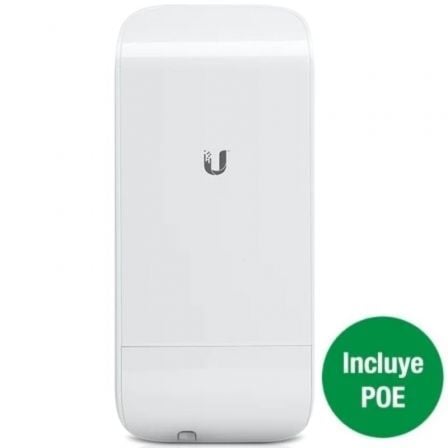

NanoStation Ubiquiti LocoM5

LocoM5

Ubiquiti Networks sets the bar for the world’s first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation®. The NanoStationM and NanoStationlocoM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX® (MIMO TDMA protocol) technology. The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy.

Features:

• Versatile Mounting
• Improved Surge Protection
• Efficient Footprint
• Quick Installation

Product Specification

• Dimensions: 161 x 31 x 80 mm
• Weight: 180 g
• Power Supply (PoE): 24V, 0.5A
• Max. Power Consumption: 5.5W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Operating Frequency MHz (Worldwide): 5170-5875
• Gain: 13 dBi
• Networking Interface: (1) 10/100 Ethernet Port
• Processor Specs: Atheros MIPS 24Kc, 400 MHz
• Memory: 64 MB DDR2, 8 MB Flash
• Frequency: 5 GHz
• Cross-pol Isolation: 20 dB Minimum
• Max. VSWR: 1.4:1
• Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
• Polarization: Dual Linear
• Enclosure: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount (Kit Included)
• Operating Temperature: -30 to 75° C
• Operating Humidity: 5 to 95% Noncondensing
• Wireless Approvals: FCC Part 15.247, IC RS210, CE
• RoHS Compliance: Yes
• Shock & Vibration: ETSI300-019-1.4
